Hoisting/ Pre-laced Hoisting Grip_CHINAMEI COMMUNICATION TECHNOLOGY CO.,LTD

hoisting grips

Hoisting/ Pre-laced Hoisting Grip

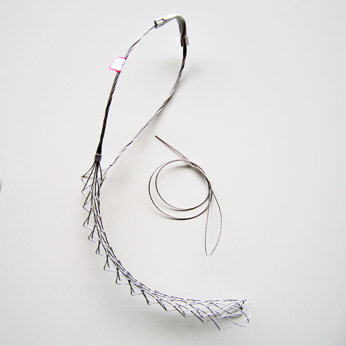

Lace-up hoisting grips provide an effective means for hoisting coax and elliptical waveguide into position and can be utilized to provide additional support once in place. The lace-up design allows the hoisting grip to be attached even when the run has been connectorized and facilitates easy positioning at 200 (61m) increments on long coax runs.

Pre-laced hoisting grips feature a closed-mesh design which simplifies installation over traditional split, lace-up style grips. The unique design allows the pre-laced hoisting grip to slip over an unterminated end of coax. The grip securely tightens when pulled, providing an effective means to hoist coax into position and to provide additional support for the coax once in place.

Available for 3/8", 1/2", 7/8", 5/4", 13/8" cable

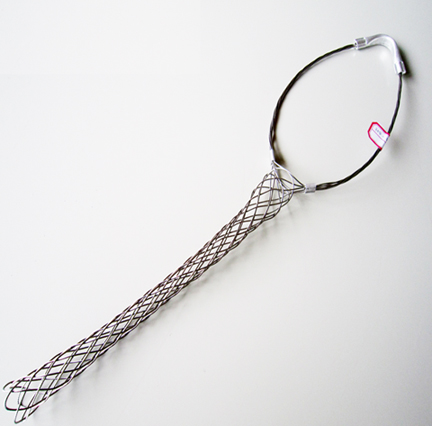

Pre-laced hoisting grip

Availabe in 3/8", 1/2", 7/8", 5/4", 13/8"

Details Feeder network sets of directions for use:
Communication or related industries in the erection of base station, the feeder to erect at the top of the base station antenna connection, but due to the feeder are generally heavier, hang empty after reaching a certain height, its weight will result in deformation of feeder. Leading to impedance changes, this will seriously affect the quality of signal transmission. Therefore, need to have a tool that will be up to the feeder and fixed on the base of the hob. So, have the special tools, feeder hanging nets.
Before didn't feeder net, construction units to fix feeder in other ways, such as hemp rope, tied with wire. Although these methods have played a role, but the overall effect is not satisfactory. On the installation is not flexible, also is not very convenient in maintenance. So, we suggest the construction unit must use a dedicated feeder network. This will give the construction or the late maintenance bring great convenience.
Workers in the erection of large cable, because the line is too long too heavy lifting to, therefore, you need to use a tool, which is net, trapping cable first, and then choose and employ persons or lifting tool hold hanging net, so as to achieve the aim of wiring, at the same time, also can be used on cable hanging nets.Note that the part of cable crane quilt is mesh structure, drawing more and more tightly, if you want to loosen, only need to stay in the opposite direction to promote network, can take out the cable, use very convenient.
