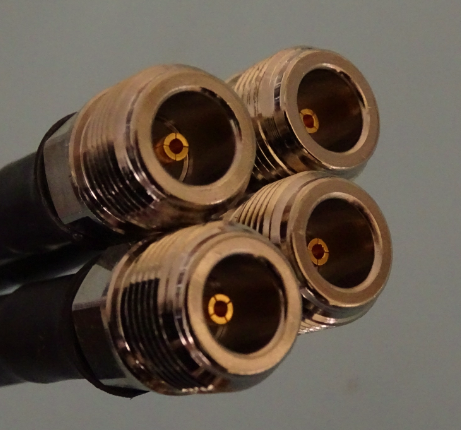

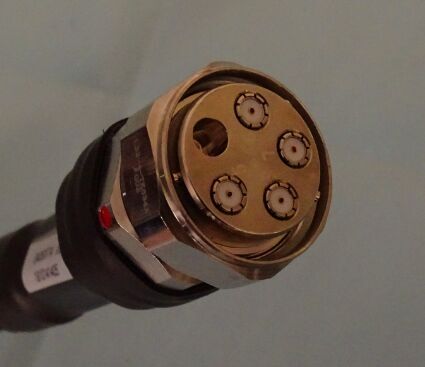

TD 4 core/5 core cluster antenna jumper

This product belongs to multi core cluster connector and the coaxial connector cable assembly and connected with 50-FB RF coaxial store with, the inner conductor is welded, outer conductor by a crimping process, reliable connection, electrical properties superior.

Electrical characteristics:

Characteristic impedance :50Ω + -2Ω                           Use frequency：1.7-2.8MHZ                Voltage resident Bobbi：≤1.25                  Dielectric pressure：≥750V rms

Insulation resistance:≥100MΩ                                Contact resistance：External contact  ≤2.0 MΩ   The contact element  ≤3.0MΩ     Insertion loss：≤0.45*L（unit:m)+0.2db(2.7GHZ)

Mechanical properties:
Endurance times      ≥100times

Material and plating:
Jack:Gilt plating               Innect:Brass plating        Shell:Brass plating             Insulator:Polyvinyl chloride four

Environmental characteristic:-55℃-70℃
