FTTH Products

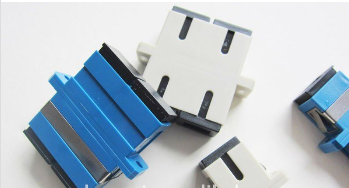

SC/FC Fiber Adapter

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HUAMAI
  • Plastic: Metal

Packaging & Delivery

Packaging Details: carton
Delivery Detail: 3 days

Specifications


Fiber Optic adapter
SC, LC, FC, ST type
Simplex and duplex
Factory price.



Description


SC-compatible adapters are comprised of a polymer or metal outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding  specifications. The combination of a ceramic/phoshphor bronze alignment sleeves and precision moulded polymer and precision metal housing provides consistent long-term mechanical and optical performance.


Features



Simplex and duplex panel cutouts
Panel clip for easy installation
Available in several standard colors
Available without flanges or with flange for duplex, saving panel space
SC2 8Port high density for patch panel mount applications
Meet JIS5974 and bellcore GR-326 standard
 Compliant with IEC874-14 & IEC874-19
 All parts compliant with RoHS


Parameter

Item Specifications
Insertion Loss ≤0.2dB
Repeatability 0.2 dB Max. Increase
pulling force (g/f) 200~600
Operating Temperature -40°C~+85°C




Details
