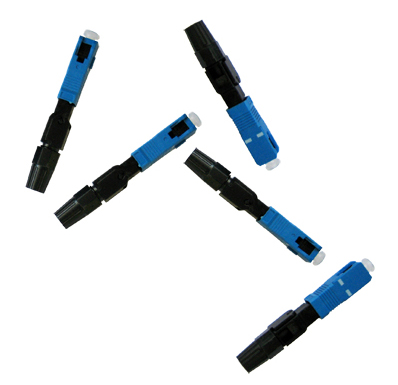

Fast fiber connector Optical fiber quick connector is within the narrow space can be convenient to the realization of the optical fiber link of the opening of the connector.When optical fiber connection node activity, optical fiber quick connector may be used for direct termination, often within the access floor branch home cable (skin line cable) termination using both ends.
Details
Product features:
Easy to operate, flexible
Low connection speed (2 minutes)
Do not need to melt, save power supply
Reusable, reduce the cost
Low installation and maintenance cost greatly reduced
Low according to user requirements length of jump line
Indoor stay time is short, not privacy infringement residents
Optical fiber quick connector product scope of application:
Easy to operate, flexible
Low connection speed (2 minutes)
Do not need to melt, save power supply
Reusable, reduce the cost
Low installation and maintenance cost greatly reduced
Low according to user requirements length of jump line
Indoor stay time is short, not privacy infringement residents
|
performance
|
parameter
|
|
Insertion loss
|
≤0.30（dB）
|
|
Return loss
|
≥50（dB）
|
|
Repeated assembling performance
|
Insertion loss
|
≤0.30（dB）
|
|
Return loss
|
≥50（dB）
|
|
Insertion loss variation
|
≤0.30（dB）
|
|
Temperature range
|
-40~+85℃
|
|
The average assembly time
|
≤2min
|
|
Plug the number
|
≥1000times
|
