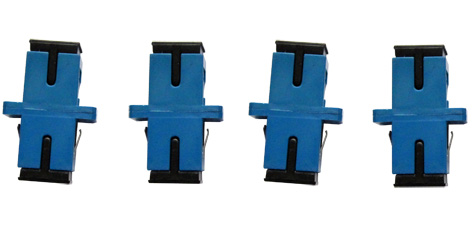

Fiber Adapter SC type single-mode simplex adapter is used for the connection between the optical fiber connector plug, adopting Angle, polished high phosphor bronze and high temperature resistant, acid and alkali of ultra-high hardness (high density) of zirconia sleeve, has the very good optical performance and high mechanical stability.
Details
Product features
Low good interchangeability and directivity
When can provide precision ceramic sleeve or phosphor bronze sleeve
Low 100% of factory inspection to ensure the reliability of the product
Low accurate external size make it easier to install
Products using
Low optical fiber transmission network
Low cable television network
Low fiber LAN
Low fiber testing instrument
Optical fiber distribution frame, frame type and wall hung optical fiber wiring units
|
Working wavelength
|
1200nm~1600nm
|
|
Insertion loss
|
≤0.3dB
|
|
Return loss
|
≥50dB
|
|
interchangeability
|
≤0.2dB
|
|
Call waiting times
|
≥1000次
|
|
The use of temperature
|
-30℃——+85℃
|
|
Storage temperature
|
-40°C——+85°C
|
|
Relative humidity
|
95%
|
