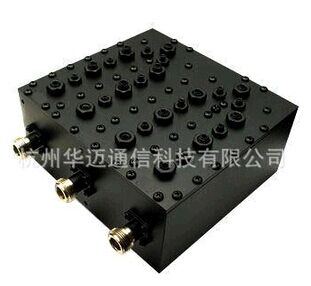

Three frequency or road 2 gtdwlan combiner In engineering applications, the need to be 800 MHZ, 900 MHZ C G network or other different frequency output at the same time, USES the combiner, can make a set of indoor distribution system at the same time to work on, GSM, CDMA frequency spectrum or other frequencies.
Such as in a radio antenna system, will be several different frequency band (such as 145 MHZ and 435 MHZ) after input and output signal through a combiner with a feeder and radio connection, this not only saves a feeder, also avoid the switching of different antenna problems.
Details
Electrical indicators
|
model |
HM-3w-TDWlan |
|
pathways1（PORT1～COM）MHz |
806～960&1710～1830 |
|
pathways2（PORT2～COM）MHz |
1880～1920&2010～2025 |
|
pathways3（PORT3～COM）MHz |
2400～2500 |
|
Standing wave ratio |
≤1.3 |
|
Port isolation (dB) |
≥ 80 |
|
Insertion loss(dB) |
≤0.8 |
|
The third order intermodulation (dBc) |
≤-130 |
|
With fluctuations in(dB) |
≤0.6 |
|
Maximum average power (W) |
200 |
|
The input impedance (Ω) |
50 |
Mechanical indicators
|
size(H x W x D)(mm) |
218x145x40 |
|
Temperature range (℃) |
-35 — 65 |
|
Application scenarios |
IP64 |
|
The interface type |
N female
|
